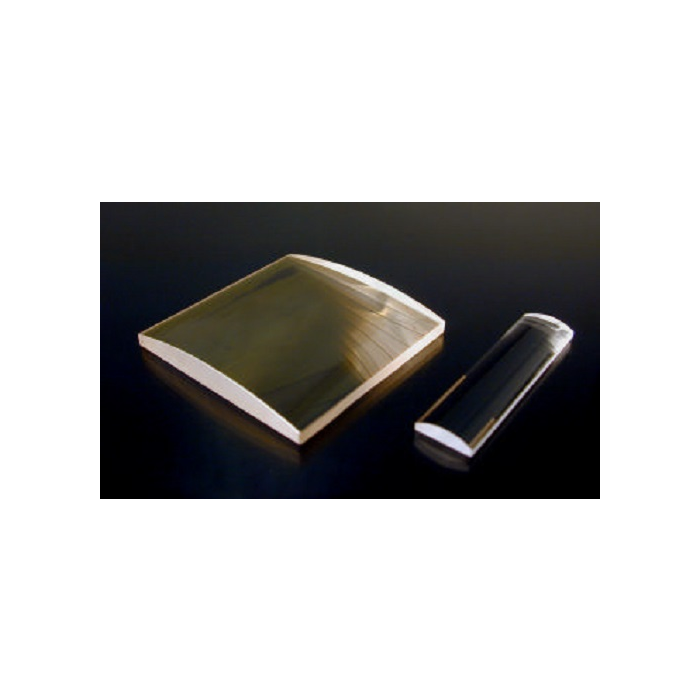

BK7平凸柱面透鏡
材質：N-BK7外部尺寸(長x寬或直徑)公差：+0.0/-0.1 mm
尺寸公差：±0.2 mm
焦距公差：±2%
表面品質：60-40 Scratch-Dig
可視孔徑：≥90% of Surface Dimensions
| 型號 | 尺寸 | 焦距 (FL) |
中心厚度 (Tc) |
邊緣厚度 (Te) |
曲率半徑 (R) |
背焦距 (BFL) |
| CPCX-463.9-B | H4 x L6 | 3.9 | 3.8 | 2 | 2.02 | 1.39 |
| CPCX-483.9-B | H4 x L8 | 3.9 | 3.8 | 2 | 2.02 | 1.39 |
| CPCX-464-B | H4 x L6 | 4 | 3.6 | 2 | 2.07 | 1.7 |
| CPCX-484-B | H4 x L8 | 4 | 3.6 | 2 | 2.07 | 1.7 |
| CPCX-465.8-B | H4 x L6 | 5.8 | 2.8 | 2 | 3 | 4 |
| CPCX-485.8-B | H4 x L8 | 5.8 | 2.8 | 2 | 3 | 4 |
| CPCX-686.35-B | H6 x L8 | 6.35 | 4 | 2 | 3.3 | 3.7 |
| CPCX-6126.35-B | H6 x L12 | 6.35 | 4 | 2 | 3.3 | 3.7 |
| CPCX-686.4-B | H6 x L8 | 6.4 | 4 | 2 | 3.3 | 3.7 |
| CPCX-6126.4-B | H6 x L12 | 6.4 | 4 | 2 | 3.3 | 3.7 |
| CPCX-797.7-B | H7 x L9 | 7.7 | 4.1 | 2 | 4 | 5 |
| CPCX-7147.7-B | H7 x L14 | 7.7 | 4.1 | 2 | 4 | 5 |
| CPCX-10129.7-B | H10 x L12 | 9.7 | 6.69 | 2 | 5.01 | 5.29 |
| CPCX-10209.7-B | H10 x L20 | 9.7 | 6.69 | 2 | 5.01 | 5.29 |
| CPCX-101210-B | H10 x L12 | 10 | 5.9 | 2 | 5.17 | 6.1 |
| CPCX-102010-B | H10 x L20 | 10 | 5.9 | 2 | 5.17 | 6.1 |
| CPCX-101212.7-B | H10 x L12 | 12.7 | 4.31 | 2 | 6.56 | 9.9 |
| CPCX-102012.7-B | H10 x L20 | 12.7 | 4.31 | 2 | 6.56 | 9.9 |
| CPCX-131512.7-B | H13 x L15 | 12.7 | 7.67 | 2 | 6.56 | 7.64 |
| CPCX-132612.7-B | H13 x L26 | 12.7 | 7.67 | 2 | 6.56 | 7.64 |
| CPCX-131513.7-B | H13 x L15 | 13.7 | 6.27 | 2 | 7.08 | 9.57 |
| CPCX-101215-B | H10 x L12 | 15 | 3.8 | 2 | 7.76 | 12.5 |
| CPCX-102015-B | H10 x L20 | 15 | 3.8 | 2 | 7.76 | 12.5 |
| CPCX-161819-B | H16 x L18 | 19 | 6.13 | 2 | 9.82 | 14.96 |
| CPCX-101220-B | H10 x L12 | 20 | 3.3 | 2 | 10.34 | 17.8 |
| CPCX-102020-B | H10 x L20 | 20 | 3.29 | 2 | 10.34 | 17.8 |
| CPCX-151720-B | H15 x L17 | 20 | 5.2 | 2 | 10.34 | 16.6 |
| CPCX-153020-B | H15 x L30 | 20 | 5.2 | 2 | 10.34 | 16.6 |
| CPCX-101225-B | H10 x L12 | 25 | 3 | 2 | 12.93 | 22.9 |
| CPCX-102025-B | H10 x L20 | 25 | 3.01 | 2 | 12.93 | 23 |
| CPCX-202225-B | H20 x L22 | 25 | 6.7 | 2 | 12.93 | 20.4 |
| CPCX-204025-B | H20 x L40 | 25 | 6.7 | 2 | 12.93 | 20.4 |
| CPCX-161825.4-B | H16 x L18 | 25.4 | 4.72 | 2 | 13.13 | 22.29 |
| CPCX-163225.4-B | H16 x L32 | 25.4 | 4.72 | 2 | 13.13 | 22.29 |
| CPCX-202230-B | H20 x L22 | 30 | 5.7 | 2 | 15.51 | 26.3 |
| CPCX-204030-B | H20 x L40 | 30 | 5.7 | 2 | 15.51 | 26.3 |
| CPCX-25.42838.1-B | H25.4 x L28 | 38.1 | 6.64 | 2 | 19.69 | 33.72 |
| CPCX-25.45138.1-B | H25.4 x L51 | 38.1 | 6.64 | 2 | 19.69 | 33.72 |
| CPCX-101240-B | H10 x L12 | 40 | 2.6 | 2 | 20.68 | 38.3 |
| CPCX-102040-B | H10 x L20 | 40 | 2.6 | 2 | 20.68 | 38.3 |
| CPCX-202240-B | H20 x L22 | 40 | 4.6 | 2 | 20.68 | 37 |
| CPCX-204040-B | H20 x L40 | 40 | 4.6 | 2 | 20.68 | 37 |
| CPCX-202250-B | H20 x L22 | 50 | 4.02 | 2 | 25.85 | 47.4 |
| CPCX-204050-B | H20 x L40 | 50 | 4.02 | 2 | 25.85 | 47.4 |
| CPCX-306050-B | H30 x L60 | 50 | 6.8 | 2 | 25.85 | 45.5 |
| CPCX-50.85350.8-B | H50.8 x L53 | 50.8 | 21.6 | 2 | 26.26 | 36.7 |
| CPCX-303260-B | H30 x L32 | 60 | 5.87 | 2 | 31.01 | 56.13 |
| CPCX-303270-B | H30 x L32 | 70 | 5.25 | 2 | 36.18 | 66.54 |
| CPCX-204075-B | H20 x L40 | 75 | 3.31 | 2 | 38.78 | 72.8 |
| CPCX-50.85375-B | H50.8 x L53 | 75 | 11.5 | 2 | 38.78 | 67.4 |
| CPCX-2040100-B | H20 x L40 | 100 | 3.98 | 3 | 51.68 | 97.4 |
| CPCX-3032100-B | H30 x L32 | 100 | 5.2 | 3 | 51.7 | 96.6 |
| CPCX-3060100-B | H30 x L60 | 100 | 5.2 | 3 | 51.7 | 96.6 |
| CPCX-3032130-B | H30 x L32 | 130 | 4.69 | 3 | 67.17 | 126.91 |
| CPCX-3060130-B | H30 x L60 | 130 | 4.69 | 3 | 67.17 | 126.91 |
| CPCX-2022150-B | H20 x L22 | 150 | 3.65 | 3 | 77.55 | 147.6 |
| CPCX-2040150-B | H20 x L40 | 150 | 3.65 | 3 | 77.55 | 147.6 |
| CPCX-3032150-B | H30 x L32 | 150 | 4.5 | 3 | 77.55 | 147.1 |
| CPCX-3060150-B | H30 x L60 | 150 | 4.5 | 3 | 77.55 | 147.1 |
| CPCX-2040200-B | H20 x L40 | 200 | 3.49 | 3 | 103.4 | 197.7 |
| CPCX-3032200-B | H30 x L32 | 200 | 4.1 | 3 | 103.4 | 197.3 |
| CPCX-3060200-B | H30 x L60 | 200 | 4.1 | 3 | 103.4 | 197.3 |
| CPCX-2022250-B | H20 x L22 | 250 | 3.39 | 3 | 129.25 | 247.8 |
| CPCX-2040250-B | H20 x L40 | 250 | 3.39 | 3 | 129.25 | 247.8 |
| CPCX-2040300-B | H20 x L40 | 300 | 3.32 | 3 | 155.1 | 297.8 |
| CPCX-3032300-B | H30 x L32 | 300 | 3.7 | 3 | 155.1 | 297.7 |
| CPCX-3060300-B | H30 x L60 | 300 | 3.7 | 3 | 155.1 | 297.7 |
| CPCX-6062300-B | H60 x L62 | 300 | 5.93 | 3 | 155.1 | 296.09 |
| CPCX-3032400-B | H30 x L32 | 400 | 3.5 | 3 | 206.8 | 397.7 |
| CPCX-3060400-B | H30 x L60 | 400 | 3.5 | 3 | 206.8 | 397.7 |
| CPCX-2040500-B | H20 x L40 | 500 | 3.19 | 3 | 258.5 | 497.9 |
| CPCX-3032500-B | H30 x L32 | 500 | 3.4 | 3 | 258.5 | 497.7 |
| CPCX-3060500-B | H30 x L60 | 500 | 3.4 | 3 | 258.5 | 497.7 |
| CPCX-3032700-B | H30 x L32 | 700 | 3.31 | 3 | 361.76 | 697.82 |
| CPCX-20401000-B | H20 x L40 | 1000 | 3.1 | 3 | 516.8 | 998.2 |
| CPCX-30601000-B | H30 x L60 | 1000 | 3.2 | 3 | 516.8 | 997.9 |
| CPCX-S0520-B | H5 x L5 | 20 | 2.31 | 2 | 10.33 | 18.5 |
| CPCX-S1012.7-B | H10 x L10 | 12.7 | 4.31 | 2 | 6.56 | 9.9 |
| CPCX-S1020-B | H10 x L10 | 20 | 3.29 | 2 | 10.33 | 17.8 |
| CPCX-S1025-B | H10 x L10 | 25 | 3.01 | 2 | 12.92 | 22.9 |
| CPCX-S2050-B | H20 x L20 | 50 | 4.02 | 2 | 25.85 | 47.4 |
| CPCX-S2075-B | H20 x L20 | 75 | 3.31 | 2 | 38.78 | 72.8 |
| CPCX-S20100-B | H20 x L20 | 100 | 3.98 | 3 | 51.68 | 97.4 |
| CPCX-S20150-B | H20 x L20 | 150 | 3.65 | 3 | 77.55 | 147.6 |
| CPCX-S20200-B | H20 x L20 | 200 | 3.49 | 3 | 103.4 | 197.7 |
| CPCX-S20250-B | H20 x L20 | 250 | 3.39 | 3 | 129.25 | 247.8 |
| CPCX-S20300-B | H20 x L20 | 300 | 3.32 | 3 | 155.1 | 297.8 |
| CPCX-S20500-B | H20 x L20 | 500 | 3.19 | 3 | 258.5 | 497.9 |
| CPCX-S201000-B | H20 x L20 | 1000 | 3.1 | 3 | 516.8 | 998.2 |
| CPCX-R0505-B | Ø12.5 | 12.7 | 6.57 | 2 | 6.56 | 8.36 |
| CPCX-R0510-B | Ø12.5 | 25 | 3.61 | 2 | 12.93 | 22.64 |
| CPCX-R0520-B | Ø12.5 | 50 | 2.77 | 2 | 25.85 | 48.19 |
| CPCX-R0530-B | Ø12.5 | 75 | 2.5 | 2 | 38.78 | 73.39 |
| CPCX-R0540-B | Ø12.5 | 100 | 2.38 | 2 | 51.68 | 98.43 |
| CPCX-R1010-B | Ø25.4 | 25 | 11.62 | 2 | 12.93 | 17.36 |
| CPCX-R1020-B | Ø25.4 | 50 | 5.22 | 2 | 25.85 | 46.58 |
| CPCX-R1030-B | Ø25.4 | 75 | 4.07 | 2 | 38.78 | 72.36 |
| CPCX-R1040-B | Ø25.4 | 100 | 3.53 | 2 | 51.68 | 97.67 |
| CPCX-R1050-B | Ø25.4 | 125 | 3.22 | 2 | 64.6 | 122.88 |
| CPCX-R1060-B | Ø25.4 | 150 | 3.01 | 2 | 77.55 | 148.07 |
